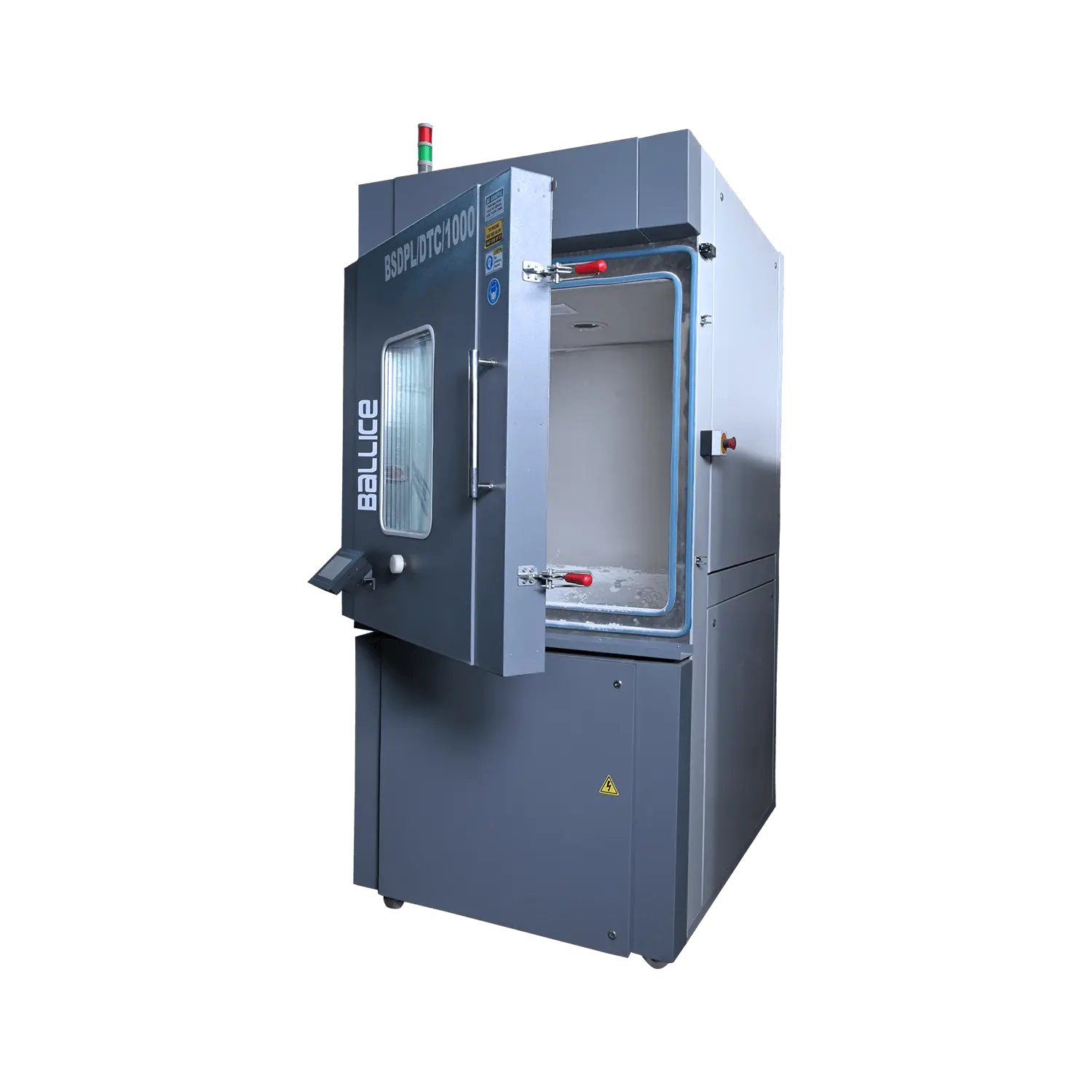

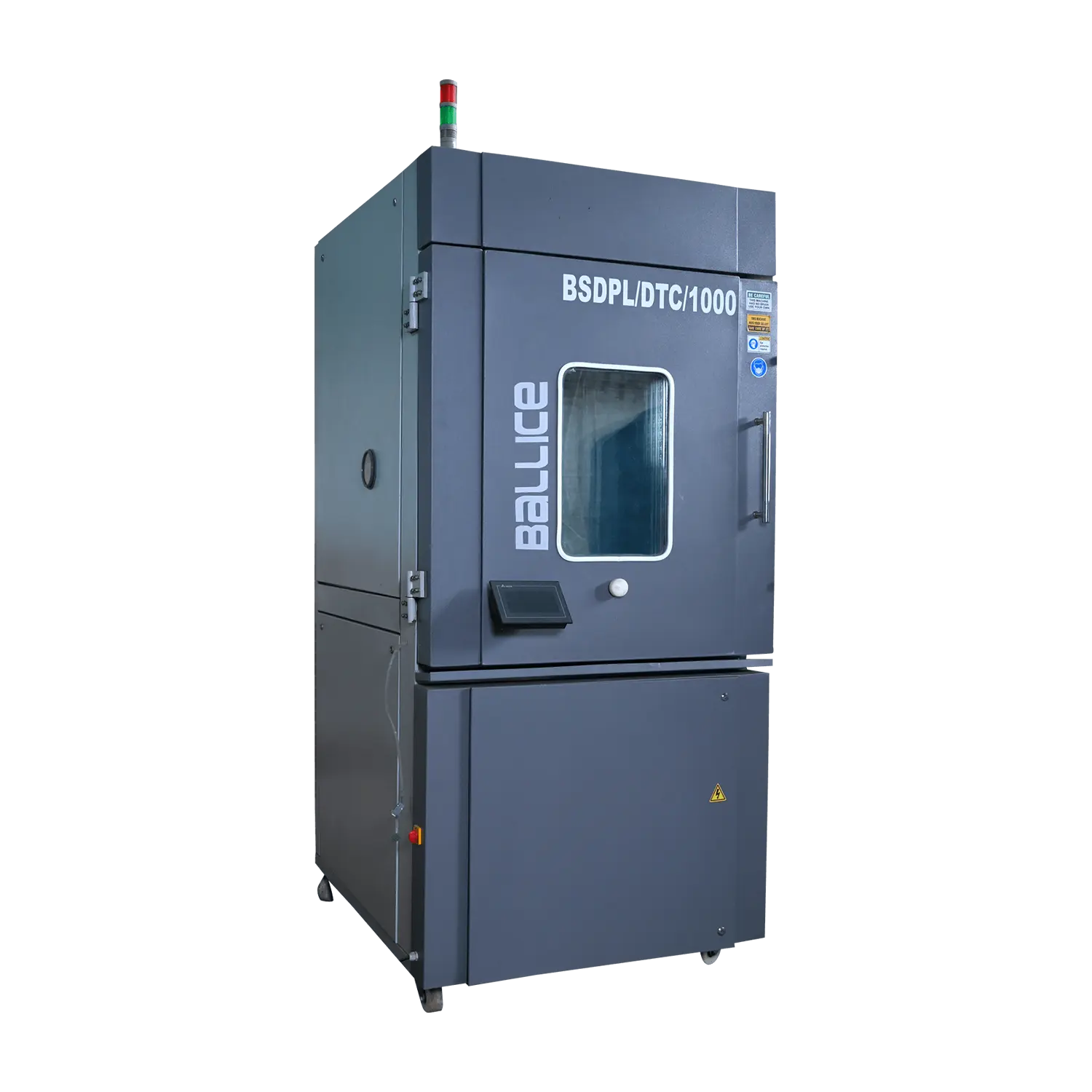

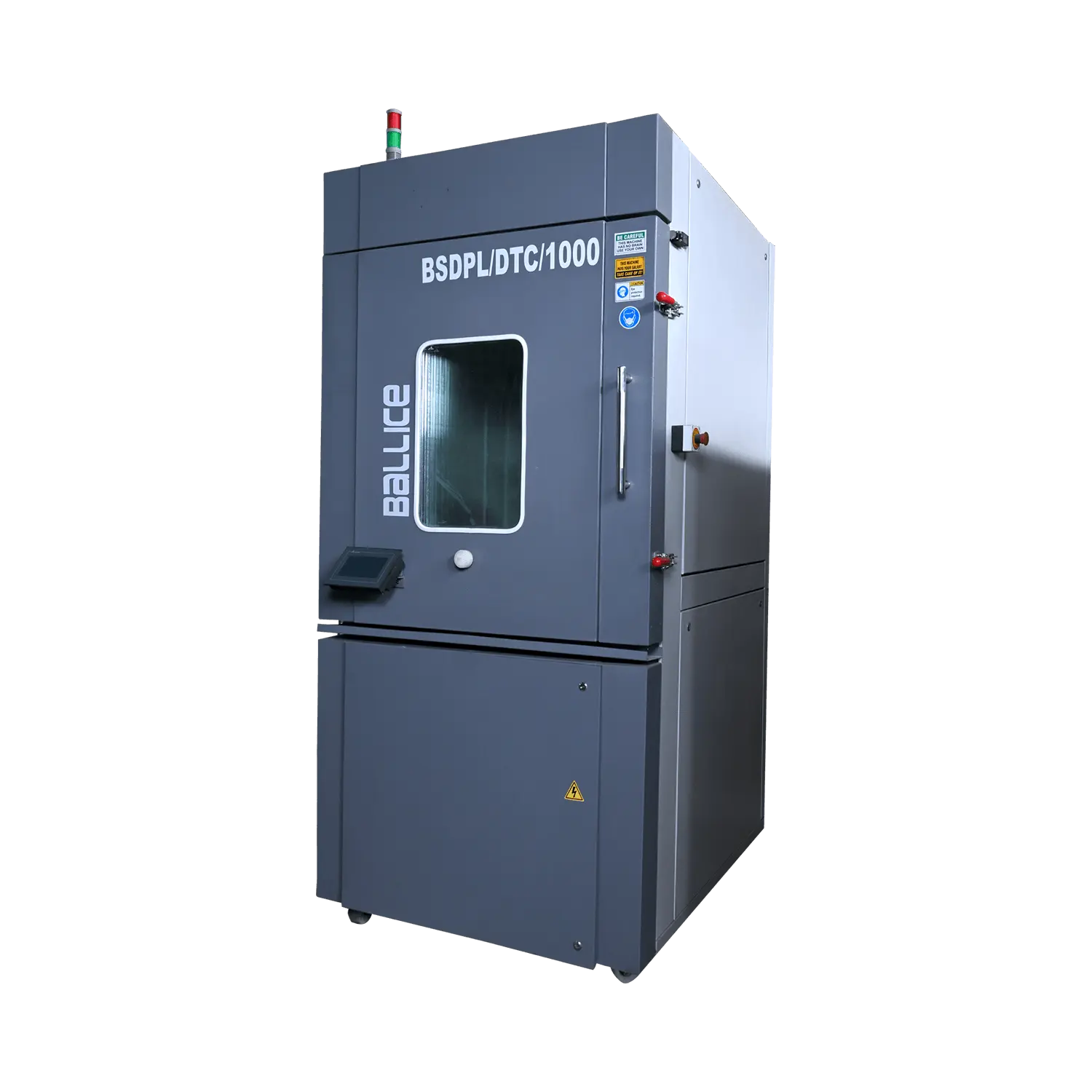

Dust Test Chamber

Sand and Dust Test Chamber provide an environment to test the exposure of automotive and electronic components to concentrated levels of dust. These chambers are utilized in several industries and applications such as for Military & Defence, Automotive, Computer Systems, Optics and Displays, Material, Coatings, Solar Energy, etc.

Moreover, our equipment is supplied with fully programmable control systems to ensure the perfect test environment. It is built keeping in mind the client requirements.

Build Spec

Vertical model(Customizable)
Inner Chamber made of dully polished Stainless Steel, 304 Grade. Outer made of Mild Steel, powder coated.
Polyurethane Foam (PUF) and Glass Wool / Ceramic blanket Insulation.
Handle, lock and heavy-duty hinges for door.
Door with Silicon / Neoprene rubber gasket for leak proof.
Forced air circulation to create duststorm.
Frost Free Viewing Window to observe the testing components during working condition.
Double walled full front opening door. Inner lined with SS.
Long life Ni-chrome, SS heaters with fins for higher temperature.
Automatic cut off for circulating fan when the door is opened.
Lockable Wheels for freezing movement.
Drain facility to drain the condensed water from the chamber.
Adjustable SS meshed trays.

Technical Spec

Usage/Application	Dust Test Chamber
Size	1 x 1 x 1 meter(Customizable)
High Temperature	Ambient to +100°C
Power	415 Voltage
Country of Origin	Made in India

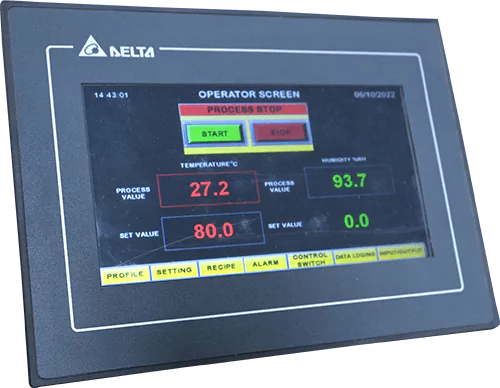

Controller	TFT 7 inch Touch screen controller
Air circulation	2 H.P. Inside the Motor
Power supply	Electric-AC
Timer	Available
Controller	PLC/PID-controller based operation.
Interface	Touchscreen HMI (OMRON)

Accessories

Additional portholes(OPTIONAL)
Internal shelves: in AISI 304 stainless steel, height adjustable, grid shelves to be added to the one supplied
Notched porthole
LED light
Timer
