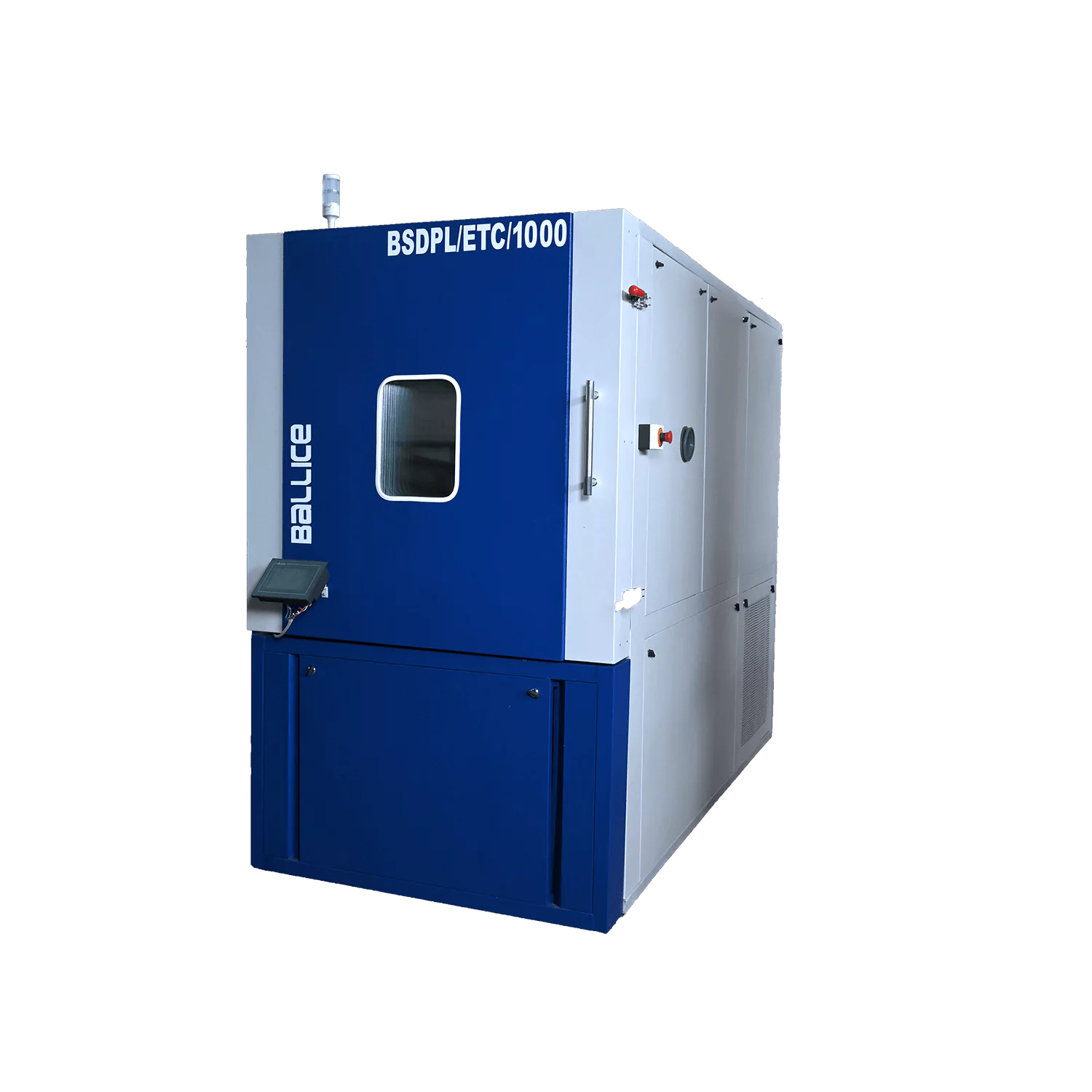

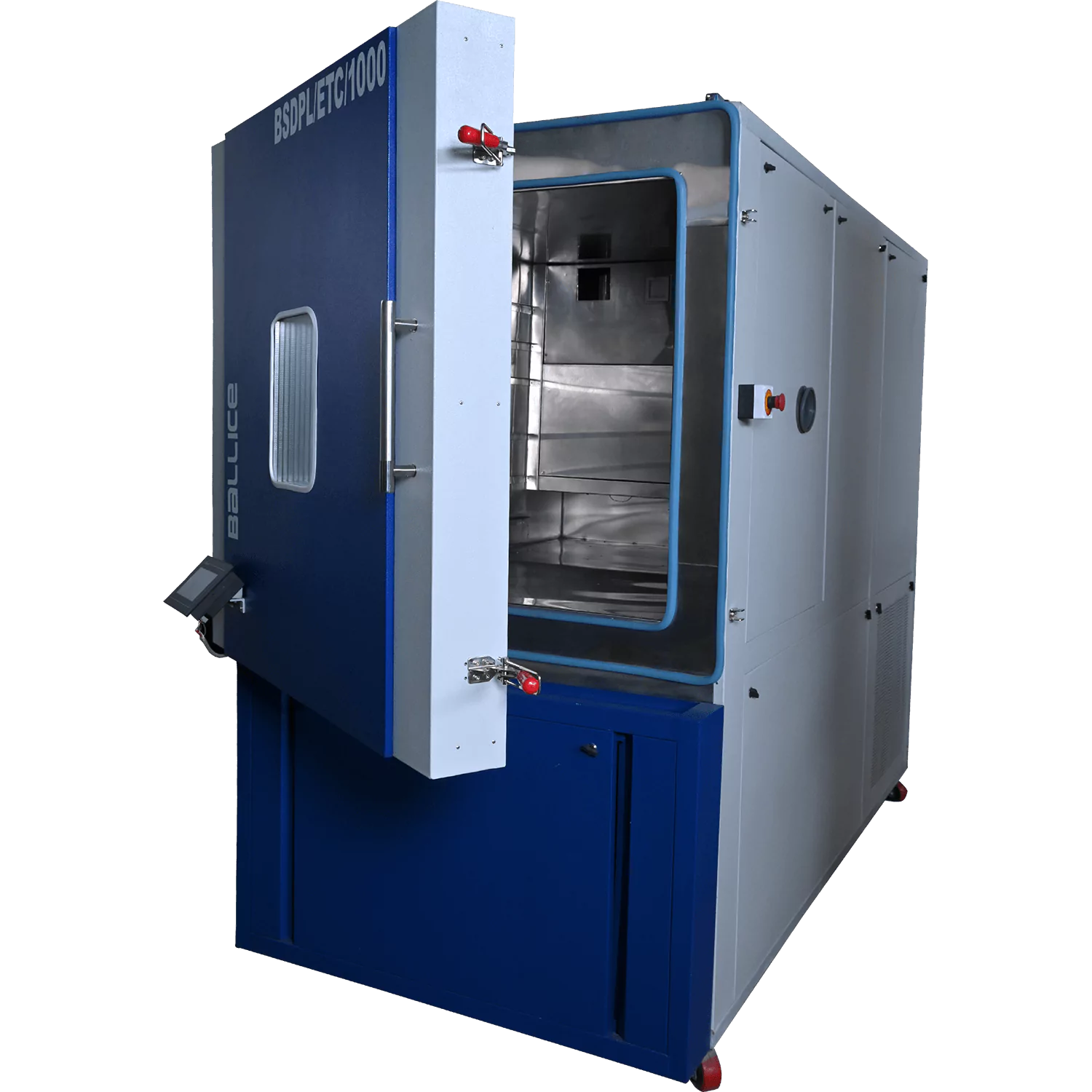

Environmental Testing Chamber

Hot and cold environmental testing chamber is an enclosure used to test the effects of environmental conditions on biological items, industrial products, materials, and electronic devices and components in the case of moderately/Extremely hot as well as Moderately/Extremely Cold condition.Chamber testing involves testing and exposing products to various environmental conditions in a controlled setting. These chamber artificially replicates conditions which machinery, materials, devices or components might be exposed to. It is also used to accelerate the effects of exposure to the environment, sometimes at conditions not actually expected.

Build Spec

Vertical model(Customizable)
Inner Chamber made of dully polished Stainless Steel, 304 Grade. Outer made of Mild Steel, powder coated.
Polyurethane Foam (PUF) and Glass Wool / Ceramic blanket Insulation.
Handle, lock and heavy-duty hinges for door.
Door with Silicon / Neoprene rubber gasket for leak proof.
Forced air circulation to maintain uniformity of temperature.
Frost Free Viewing Window to observe the testing components during working condition.
Double walled full front opening door. Inner lined with SS.
Long life Ni-chrome, SS heaters with fins for higher temperature.
Automatic cut off for circulating fan when the door is opened.
Lockable Wheels for easy movement.
Drain facility to drain the condensed water from the chamber.
Adjustable SS meshed trays.

Technical Spec

Usage/Application	Dry & Heat Test Chamber
Size	1 x 2 x 5 meter
High Temperature	Ambient to +600 Degree
Power	415 Voltage
Country of Origin	Made in India
Controller	TFT 7 inch Touch screen controller
Air circulation	2 H.P Inside the Motor
Power supply	Electric
Temp Range	70/+180°C
Humidity	0-95%RH

Accessories

Additional portholes
Water-cooled condenser
Cart with wheels
UV lamp: For aging tests on painted surfaces, plastics, rubber, etc.
Internal shelves: in AISI 304 stainless steel, height adjustable, grid shelves to be added to the one supplied
Notched porthole
New R472B refrigerant gas
