Thermal Shock Chamber

The climatic chambers for thermal shock tests are used to subject the sample to severe shocks by a sudden and repeated shift from a very high temperature to a low-temperature area, with the aim of identifying defective components or testing the agility and compatibility of the specimen.

Ballice thermal shock chambers offer high performance, and extreme value and are easy to operate. The sample is placed inside a movable basket which carries it from the cold compartment to the hot compartment and vice versa for a large number of cycles. These chambers have two or more test compartments and an automatic or controller-based setting for moving of basket

Build Spec

  • Vertical model(Customizable)
  • Inner Chamber made of dully polished Stainless Steel, 304 Grade. Outer made of Mild Steel, powder coated.
  • Polyurethane Foam (PUF) and Glass Wool / Ceramic blanket Insulation.
  • Handle, lock, and heavy-duty hinges for the door.
  • Door with Silicon / Neoprene rubber gasket for leakproof.
  • Forced air circulation to maintain uniformity of temperature.
  • Frost Free Viewing Window to observe the testing components during working conditions.
  • Double-walled full front opening door. Inner lined with SS.
  • Long life Ni-chrome, SS heaters with fins for higher temperature.
  • Automatic cut-off for circulating fan when the door is opened.
  • Lockable Wheels for freezing movement.
  • Drain facility to drain the condensed water from the chamber.
  • Adjustable SS meshed trays.

Technical Spec

Usage/Application Cold & Heat Test Chamber
Size 1 x 2 x 5 meter (Customizable)
High Temperature Ambient to +600 Degree
Power 415 Voltage
Country of Origin Made in India
Controller TFT 7 inch Touch screen controller
Air circulation 2 H.P Inside the Motor
Power supply Electric-AC
Basket Available
Controller PLC based operation.
Interface Touchscreen HMI(OMRON)



Accessories

  • Additional portholes
  • Water-cooled /Air cooled condenser.
  • Cart with wheels.
  • UV lamp: For aging tests on painted surfaces, plastics, rubber, etc.
  • Internal shelves: in AISI 304 stainless steel, height adjustable, grid shelves to be added to the one supplied
  • Notched porthole
  • New R404 , R-22 refrigerant gas

KEY FEATURES

Automatically Cut The Power

Auto-Cut

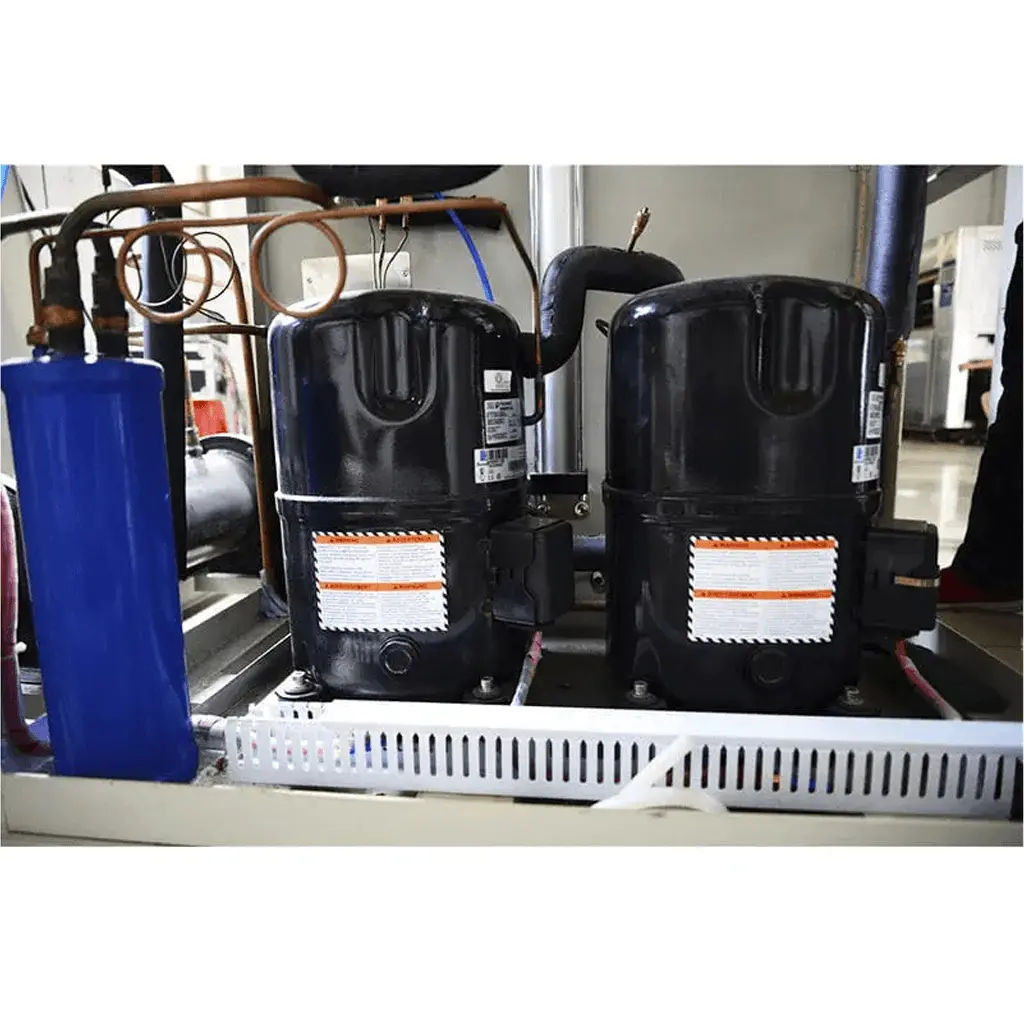

Tough compressor build

Tough Compressor

So silent you wont notice

Silent Operation

Clean water with UV

Water Filer With UV

Quickly drain water

Speedy Drainage

PUF that saves energy

Power Saving PUF

Protects components from overload

Overload Protection

Preserving nature with our products

Eco-Friendly Process

Thermostat customizability

Adjust Thermostat
