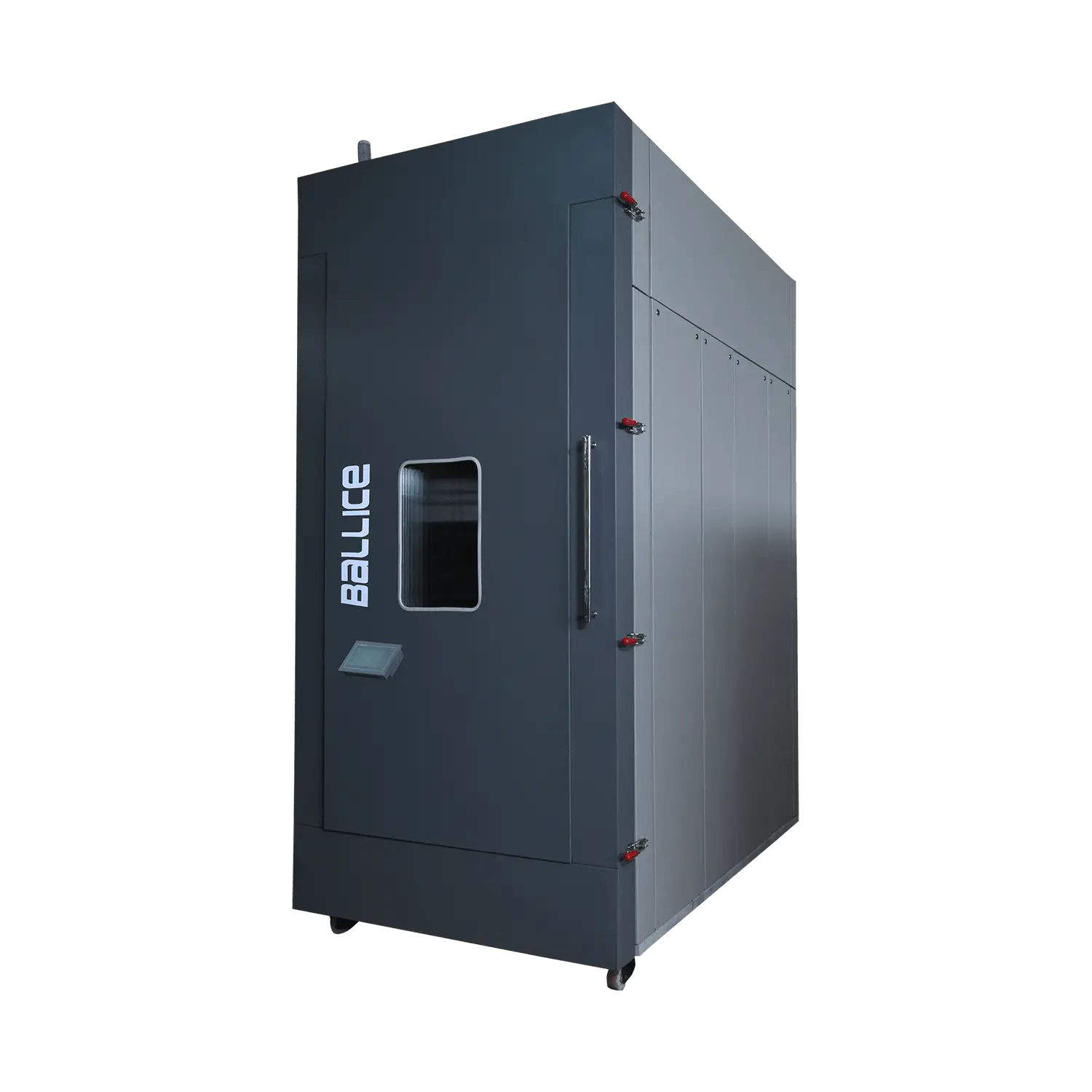

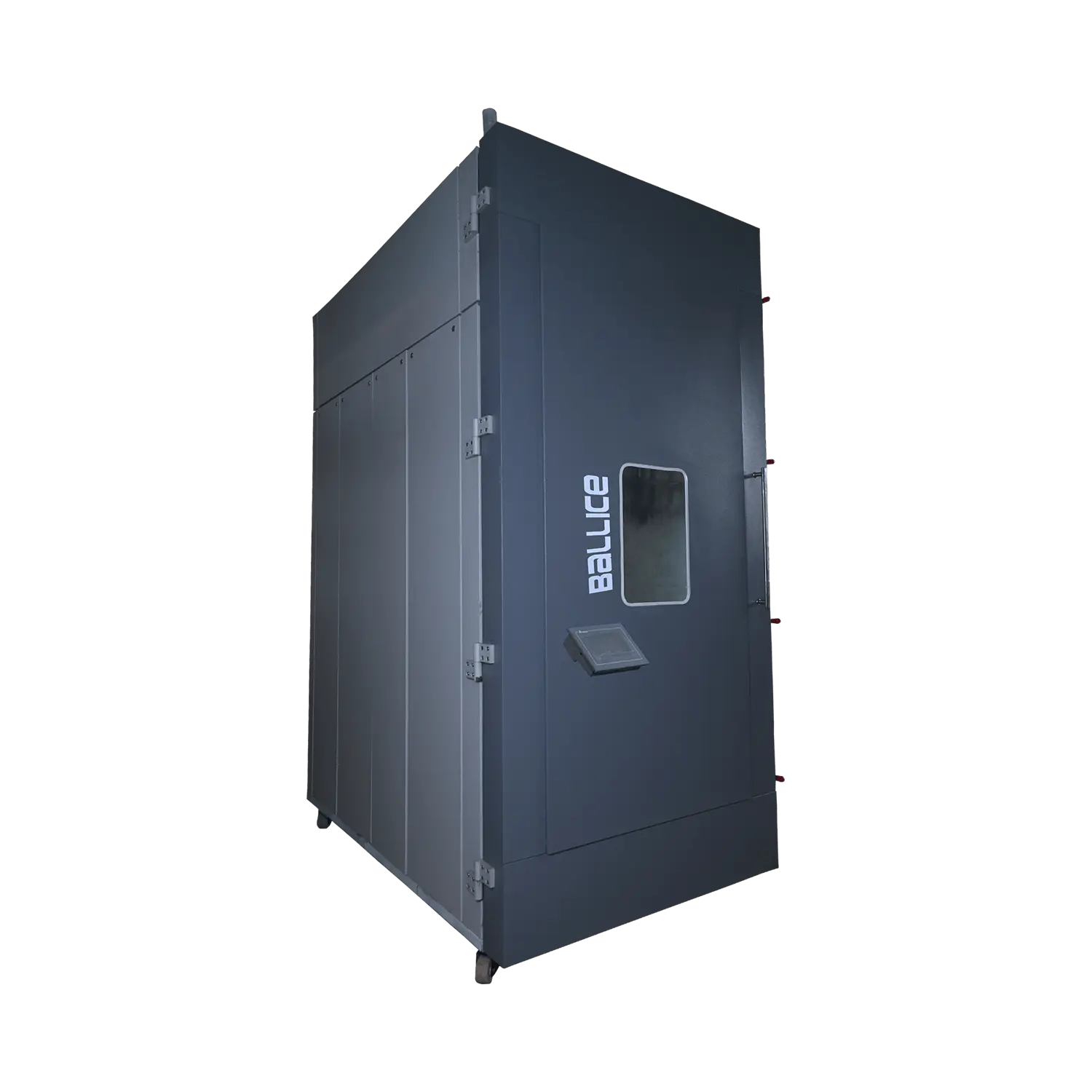

Walk-In Test Chamber Effective

A walk-in test chamber is a large chamber with massive volume such that the operator can fit a big specimen in the test room. It can stimulate conditions like Hot/Cold/Corrosion/Rain/Humidity at a much large scale.
This is a great advantage of walk-in chambers: they are
extremely flexible and can be tailored to specific customer needs not only in terms of tests but also in terms of volumes.

It might be thought that this type of chamber should be used only when the specimen is large. Indeed, their useful volume makes it possible to fit several test benches inside the test chamber, thus offering the possibility of subjecting several specimens or several types of specimens to the same test cycle simultaneously.

Build Spec

  • Vertical model(Customizable)
  • Inner Chamber made of dully polished Stainless Steel, 304 Grade. Outer made of Mild Steel, powder coated.
  • Polyurethane Foam (PUF) and Glass Wool / Ceramic blanket Insulation.
  • Handle, lock and heavy-duty hinges for door.
  • Door with Silicon / Neoprene rubber gasket for leak proof.
  • Forced air circulation to maintain uniformity of temperature.
  • Frost Free Viewing Window to observe the testing components during working condition.
  • Double walled full front opening door. Inner lined with SS.
  • Long life Ni-chrome, SS heaters with fins for higher temperature.
  • Automatic cut off for circulating fan when the door is opened.
  • Lockable Wheels for easy movement.
  • Drain facility to drain the condensed water from the chamber.
  • Adjustable SS meshed trays.

Technical Spec

Usage/Application Dry & Heat Test Chamber
Size 5X5X5 meter
High Temperature Ambient to +600 Degree
Power 415 Voltage
Country of Origin Made in India
Controller TFT 7 inch Touch screen controller
Air circulation 2 H.P Inside the Motor
Power supply Electric
Range Temp 40/+180°C
Humidity 0-98% RH

Accessories

  • Additional portholes
  • Water-cooled condenser
  • Cart with wheels
  • UV lamp: For aging tests on painted surfaces, plastics, rubber, etc.
  • Internal shelves: in AISI 304 stainless steel, height adjustable, grid shelves to be added to the one supplied
  • Notched porthole
  • New R-404, R-22 refrigerant gas

KEY FEATURES

Automatically Cut The Power

Auto-Cut

Tough compressor build

Tough Compressor

So silent you wont notice

Silent Operation

Clean water with UV

Water Filer With UV

Quickly drain water

Speedy Drainage

PUF that saves energy

Power Saving PUF

Protects components from overload

Overload Protection

Preserving nature with our products

Eco-Friendly Process

Thermostat customizability

Adjust Thermostat

Around the clock services

24x7 Door Service
